Product Details:
|
| Product Name: | Air Diaphragm Pump | Inlet/ Outlet: | 3 / 4" |
|---|---|---|---|
| Flow Rate: | 15GPM / 57LPM | Max. Air Consumption: | 20scfm (10L/s) |
| Maximum Reciprocating Speed: | 400 Cpm | Certificateion: | ISO 9001 , CE , ATex |
| Seat O Ring: | PTFE Encapsuled FCP | ||
| High Light: | 1/2" Small Air Operated Diaphragm Pump,1/2 air diaphragm pump,small air diaphragm pump |
||

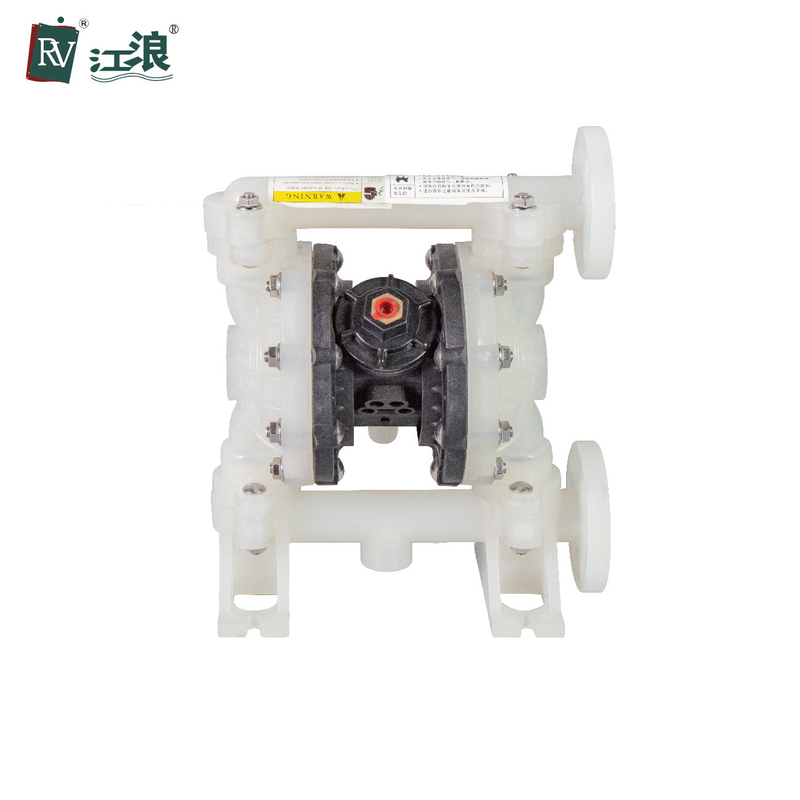

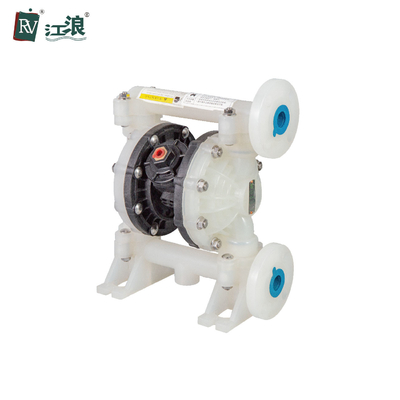

High Flow Rates Small Portable Air Diaphragm Pump For Chemical Industry
Reliable pumping solutions:
When it comes to process applications, it’s tough to beat our pumps!
We offer a variety of piston transfer and air diaphragm pumps for your low to high viscosity fluids. Every air diaphragm pump is manufactured with your productivity in mind – providing you a more reliable, efficient pump
Features:
Designed to meet your application needs.
Manufactured for complete corrosion resistance- constructed with Polypropylene center body, standard stainless steel fasteners, and your choice of Acetal, PVDF (Kynar) or Polypropylene casing materials.
Characteristic:
• 3/4 in (19.05 mm) end-porting
• No seals to leak or fail
• Quiet running — less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• High flow rates in a small, portable package
• External controller for optional remote operation
| Max Working Pressure | 100 psi(0.7Mpa, 7bar) |
| Max Flow Rate | 15 gpm(57lpm) |
| Max Reciprocating Speed | 400 cpm |
| Max Suction Height (Dry Sucking) | 4.5m |
| Max Permitted Grain | 3/32 in(2.5mm) |
| Max Air Consumption | 20scfm(10L/s) |
| Air Inlet Size | 1/4 in.npt(f) |
| Air Outlet Size | 3/8 in.npt(f) |
| Fluid Inlet Size | 1/2 in. |
| Fluid Outlet Size | 1/2 in. |
| Net Weight | PP pump 2.8kg; |
Specifications:
• Maximum Flow Rate:
• Pipe Connection: 1/2" NPT
• Pump Body Material: Polypropylene
• Diaphragm Material: PTFE (PTFE), Santoprene, NBR (Buna), Hytrel,
• Air Motor Material: Polypropylene
• Maximum Operating Pressure: 100 PSI (0.7 Mpa)
• Supply Air Pressure Range: 30 to 100 PSI (0,7 Mpa)
• CE Certified: Yes:
Easy Maintenance:
• Low internal volume reduces waste and makes clean-up easy
• Stainless steel bolts resist corrosin and provide positive positioning for easy reassembly
Unique, Patented Air Valve:
• Three-way pilot valve for no-stick operation
• All parts are replaceable without opening wet body parts
• No air-line lubrication require
Air Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:
Jianglang Technology Co., Ltd mainly produce Air Diaphragm Pump, Electric Diaphragm Pump, and Pump Systems Complete, Regulating Valve, Control Valve, Sequencing Valve, ect.
The air diaphragm pumps and valves have been granted more than 40 patents.
Jianglang participated in setting norms and standards for technical specification for air diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
