Product Details:
|
| Product Name: | Air Operated Diaphragm Pump With Diaphragm Failure Detector | Horese Power: | 8.4 Bar |
|---|---|---|---|
| Type: | Leak Detector Monitors Pump | Accessories: | Sensor |
| Method Of Detection: | Optional And Conductive | Control Box: | Optional |
| Ball: | Buna-N | Membrane: | Buna-N |
| High Light: | RV 1 aodd pump,RV 1" Stainless Steel aodd pump,RV aodd pump diaphragm failure detection |
||

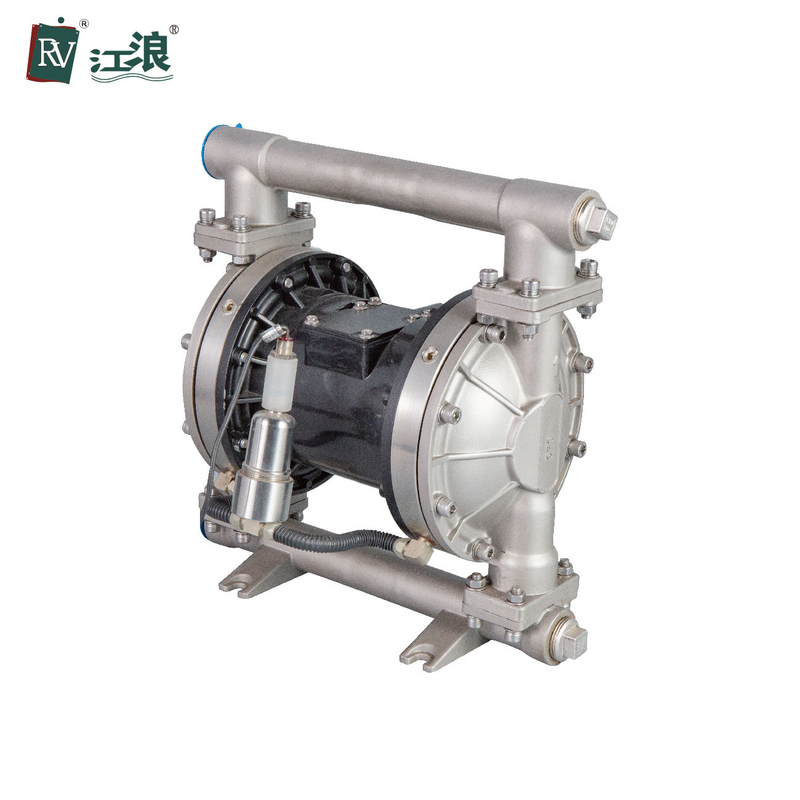

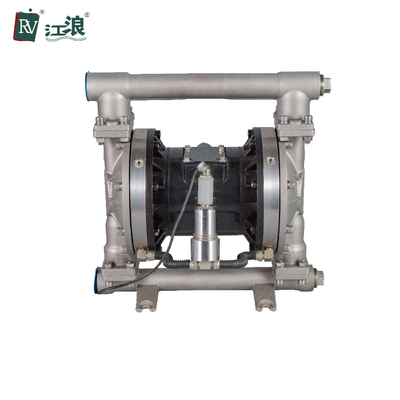

1" inch Stainless Steel Air Operated Diaphragm Pump With Diaphramg Failure Protection
The leak detector monitors air operated diaphragm pumps for diaphragm rupture or other leaks that may contaminate the fluid being pumped. The system is made up of a main control box and two liquid detection sensors. The sensors are screwed into the air side of each diaphragm on the pump. When liquid is sensed by either one of the sensors, an alarm will sound, indicating a diaphragm rupture has occurred. The control box also has the ability to control an external device such as an alarm, light, or an air solenoid via an onboard relay
PARAMETER
| Place of Origin | Shanghai, China |
| Power Source | Pneumtic |
| Structure | Air Operated Diaphragm Pump |
| Power Driven | Compressed air |
| Max Permitted Grain | 0.2 in(5mm) |
| Certification | CE, ISO: 9001 |
| Air Inlet Size | 1/2 in.npt(f) |
| Wetted End | Aluminum |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Installation | 340×230×440mm |
Performance Introduction:
During normal operation, the LED indicators on the control box and each sensor will flash once per second, indicating proper operation. If a system fault or a leak is detected, an alarm will sound and the LED on the control box will blink three times per second.
Such air operated diaphragm pumps have totally 4 specifications. The sizes for import/export are ", 1.5", 2",3". The components which contact with the fluids are usually made of Aluminum alloy, PP, PVDF, stainless steel. Depend on the varied applications; various materials of diaphragm can meet the requirements of different fluid mediums (corrosive, volatile, flammable, poisonous liquid or fluids with particles and high viscosity)
FAQ
Q1. Can I have a sample order for air operated diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air operated diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
