Product Details:
|
| Product Name: | Pneumatic Diaphragm Pump | Type: | Fuel & Oil Transfer Pump |
|---|---|---|---|
| Pump Casting: | SS 316 | Model Type: | RVS-5L488-T |
| Lift: | 230 FT / 70meter | Application: | Commercial Buildings, Drinking Water Treatment |
| Structure: | Diaphragm Pump | Weight: | 6.8kg |
| High Light: | RV 1/2" diaphragm dewatering pump,RV diaphragm dewatering pump Explosion Proof,RV diaphragm pump explosion proof |
||

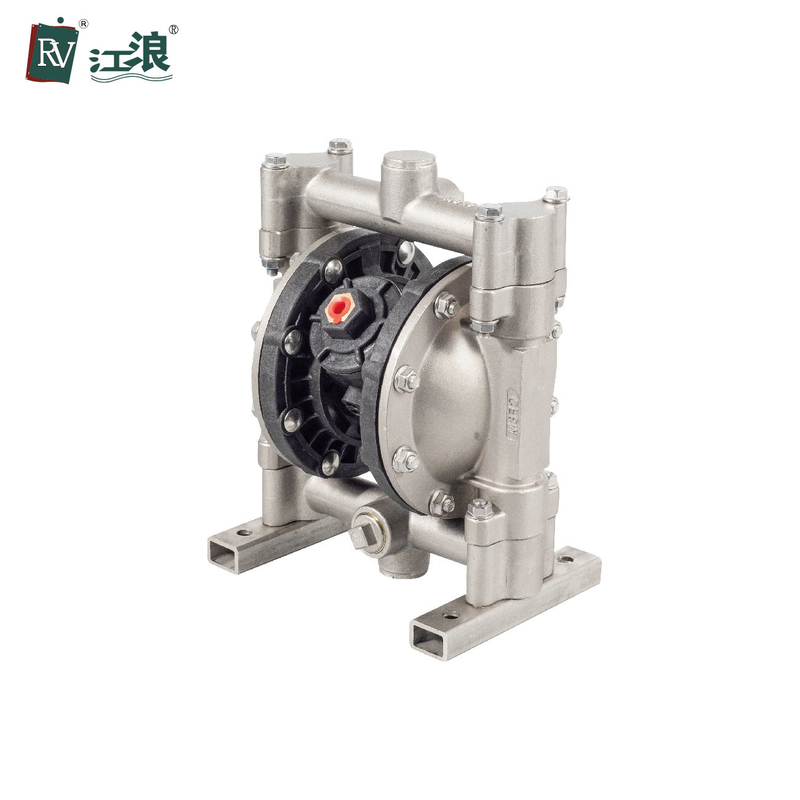

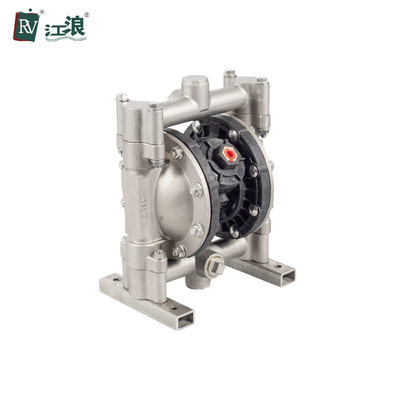

1/2" Diaphragm Dewatering Pump Explosion Proof Stainless Steel Micro
Pneumatic Diaphragm Pump Advantages:
1. Explosion-proof, zero leak, simple operation.
2. Idling capability,Self suction, No complex control.
3. Diversity of material,no rotating parts,applicable to various erosive situations.
4. Diaphragm, ball and ball seat adopt imported materials with longer service life.
5. Modularization of main valve and air motor. No broken, easy to disassemble and repair.
INTRODUCTION
RV pneumatic diaphragm pumps (air diaphragm pump) are designed for general fluid transfer. Our pneumatic diaphragm pumps reliably transfer a wide variety of fluids, from clean, light viscosity to medium viscosity. They can pump large particles without damage.
Metal pneumatic diaphragm pump casings can easily handle corrosive and abrasive fluids. Most air diaphragm pump are ATEX certifiede.
Pneumatic Diaphragm Pump Installation:
1. Be sure the mounting can support the weight of the pneumatic diaphragm pump, hoses, and accessories, as well as the stress during operation progress.
2. During installation, make sure that the pump has been fixed with bolts on the mounting feet.
3. In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pump.
4. While fastening the pneumatic diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.
| Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
| Max Capacity | 15 gpm ( 57lpm ) |
| Max Reciprocating Speed | 400 cpm |
| Power | Pnuematic |
| Max Permitted Grain | 3/32 in ( 2.5mm ) |
| Advantages: | Explosion-proof |
| Air Inlet Size | 1/4 in.npt (f) |
| Air Outlet Size | 3/8 in.npt (f) |
| Fluid Inlet Size | 1/2 in. |
| Fluid Outlet Size | 1/2 in. |
| Net Weight | 6.8kgs |
Packing & Shipping:
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in pneumatic diaphragm pump.
Pneumatic diaphragm pump are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, pneumatic diaphragm pump are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air diaphragm pump have?
A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air operated diaphragm pump quality and service?
A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
