Product Details:
|
| Place Of Origin: | Shanghai | Certification: | CE ISO |
|---|---|---|---|
| Materal: | Aluminum Alloy | Liquid: | Solvent, Paint And Coating |
| Application: | Painting And Coating Industry | Carton Size: | 520×350×650mm |
| Size: | 2 Inch | Noise Level: | Lower Than 75 Db |
| Theory: | Air Diaphragm Pump | ||
| High Light: | RV 2" Pneumatic Diaphragm Pump,RV Pneumatic diaphragm pump air operated,RV ptfe diaphragm pump |
||

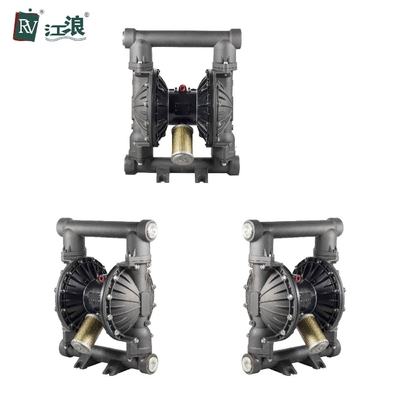

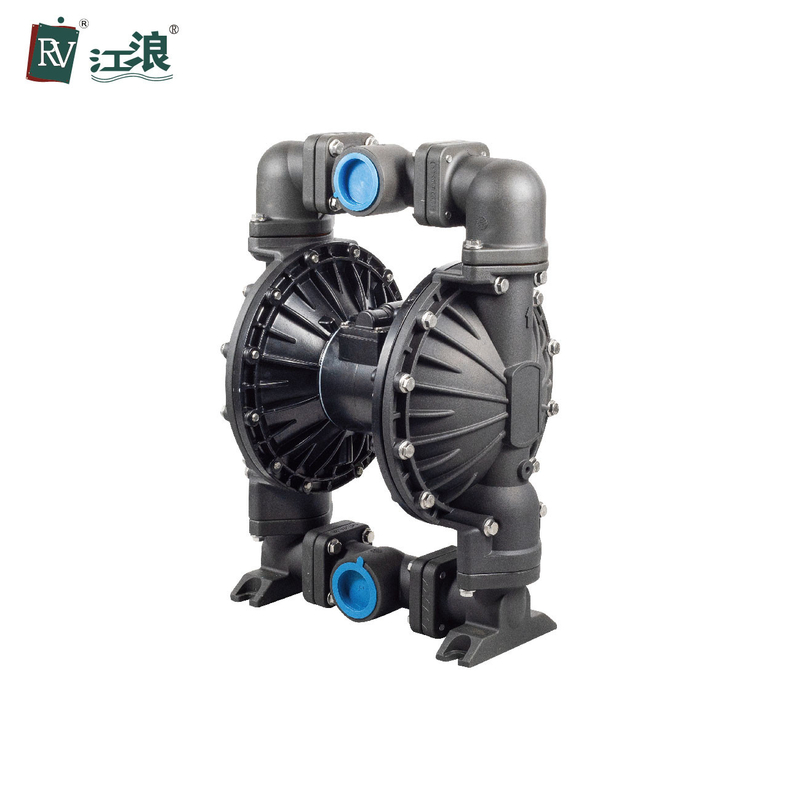

2" Pneumatic Diaphragm Pump Air Operated 150 gpm Aluminum PTFE Membranes
Application of Pneumatic Diaphragm Pump:
| Max Working Pressure | 120 psi ( 0.84 Mpa, 8.4 bar ) |
| Max Flow Rate | 150 gpm (570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in (6mm) |
| Max Air Consumption | 140 scfm ( 70 L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in |
| Model | Pipe Size | Max. Air Pressure | Wetted Parts Material | Valve Seat |
Ball Material |
Connection |
| RVA-F3311-T | 2” inch | 8.4 bar | Aluminum | Stainless Steel | PTFE |
NPT THREAD |
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Pneumatic diaphragm pump (AODD) pump are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, pneumatic diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
FAQ
Q1. Can I have a sample order for pneumatic diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for pneumatic diaphragm pump order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pneumatic diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the pneumatic diaphragm pumps?
A: Yes, we offer 5 years warranty to our pneumatic diaphragm pumps.
