Product Details:
|
| Name: | Pnuematic Diaphragm Pump Piston Pump | Structure: | Reciprocating Plunger Pump |
|---|---|---|---|
| Body Material: | SS304, SS316 | Max. Air Pressure: | 174 Psi (1.2Mpa, 12 Bar) |
| Max. Flow Rate: | 6gpm ( 22.8 Lpm) | Fluid Outlet Size: | 3/4 Inch |
| Fluid Inlet Size: | 1-1/2 In | Max. Air Consumption: | 34 Scfm (17 L/S) |
| Max. Suction Lift: | 5m | ||
| High Light: | RV air operated piston transfer pump,RV Piston Transfer Pumps 1.25:1,RV piston fluid transfer pump |
||

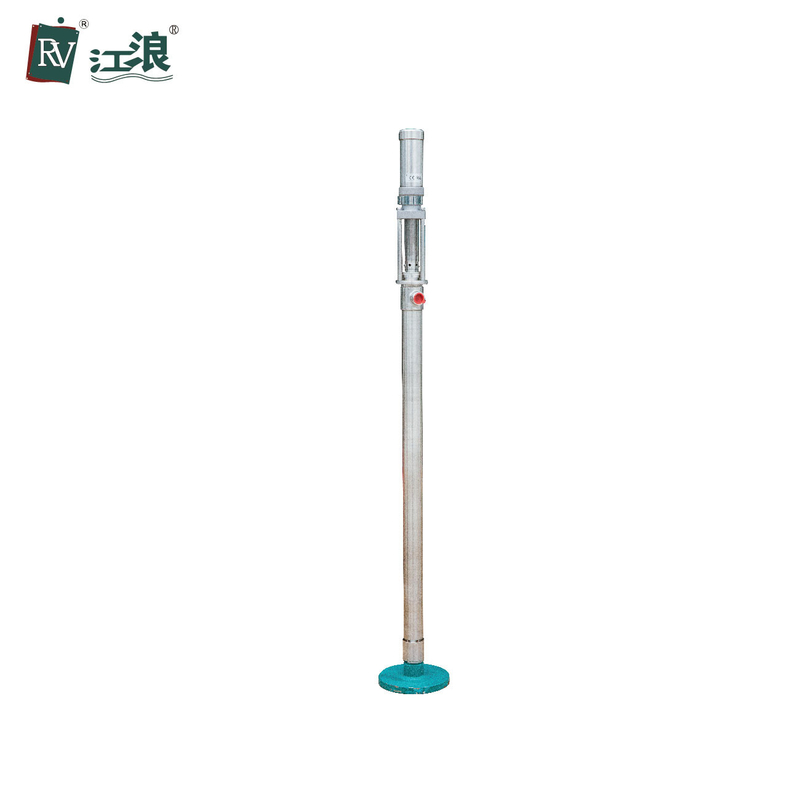

1.25:1 Pneumatic Diaphragm Pump Piston Transfer Pumps for High Viscosity Liquid
Description of RV Pneumatic Diaphragm Pump Piston Pump
RV Pneumatic plunger pump uses reciprocating plunger to make fluids flow. It can produce higher fluid pressure to carry a higher viscosity fluid, and it can be applied to arduous work and bad working conditions, suitable for all kinds of fluids conveying, circulation and extrusion process. According to quantity and shape, non returning valve can be sorted into double ball cylinder pump. Besides, there’re also low viscosity, viscosity and high viscosity plunger pump in accordance with the applicable fluid viscosity range.
CHARACTERISTICS
■To transport ultra high viscosity, high viscosity fluid, and conveying viscosity up to 20000 centipoises.
■Various types of motors can be matched with pumps of different materials to meet different flow range and pressure range.
■Pump material is 304(316),ZL101,Sealing material is PTFE and high molecular polymer.
■Control the size or control the outlet valve flow of compressed air flow, which can adjust outlet flow of the pump.
| Max Working Pressure | 174 psi(1.2Mpa, 12bar) |
| Max Flow Rate | 6 gpm ( 22.8lpm ) |
| Fluid Inlet Size | 1-1/2 in |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 2.5 mm |
| Max Air Consumption | 34 scfm ( 17 L/s ) |
| Air Inlet Size | 1/4 in.npt(f) |
| Connection Type | Female Thread |
| Ratio | 1.25 : 1 |
Company Information:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are pneumatic diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Pnuematic Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
PISTON PUMP SYSTEM
RV pneumatic piston pumps have a special sealless design that is suitable for pumping high viscosity liquids thanks to the high chemical resistance and to the absence of leakage and emissions. The structure is really simple and it requires very little maintenance with consequent savings in terms of repairing, spare parts and machine downtime costs during the pneumatic diaphragm piston pump life.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
