Product Details:
|
| Brand Name: | RV | Model Number: | RVA-K3311-T |
|---|---|---|---|
| Product Name: | Air Diaphragm Pump | Fuel: | Air Driven |
| Lift: | 230 FT / 70meter | Application: | Dinking Water Treatment, Raw Water Intake |
| Material Of Diaphragm: | PTFE Santoprene | Weight: | 77kg |
| High Light: | RV PTFE aluminum diaphragm pump,RV aluminum diaphragm pump 3 inch,RV Aluminum air diaphragm pump |
||

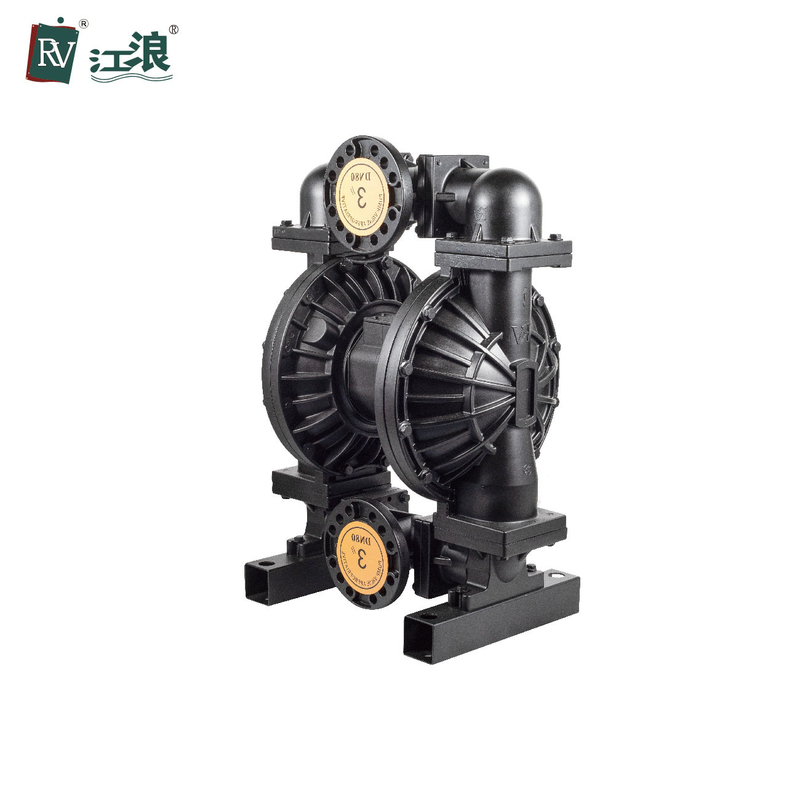

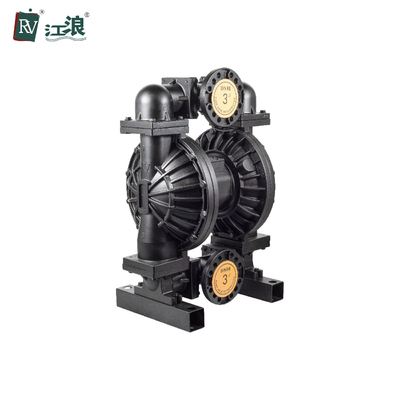

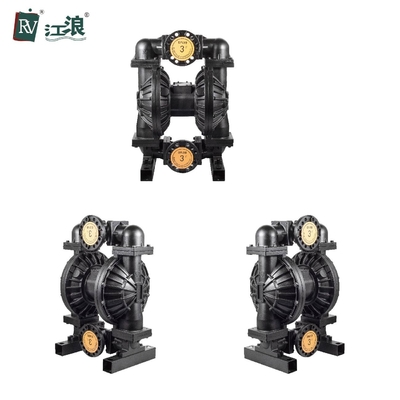

PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment
DESCRIPTION
RV aluminum diaphragm pump are suitable for aggressive liquids, even with viscosity and solids in suspension. They are built with an anti-stalling pneumatic circuit which ensures the highest possible level of security and efficiency and doesn’t require lubricated air.
RV air aluminum diaphragm pump are available in several materials and dimensions and the ATEX version can work in potentially explosive atmosphere.
MAIN FEATURES
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 270 gpm ( 1022lpm ) |
| Max Reciprocating Speed | 135 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37 in ( 9.4mm) |
| Max Air Consumption | 180scfm(90L/s) |
| Air Inlet Size | 3/4 in.npt(f) |
| Air Outlet Size | 1 in.npt(f) |
| Fluid Inlet Size | 3 in. |
| Fluid Outlet Size | 3 in. |
| Net Weight | Aluminum 77kg |
Performance curve diagram
Packing & Shipping:
Spraying And Cleaning
Aluminum Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers / bottles for anti-static. These air operated diaphragm pump are suited for these types of applications due to their durability and the volume produced by each air operated diaphragm pump. The air operated diaphragm pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air diaphragm pump have?
A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air diaphragm pump quality and service?
A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
