Product Details:
|
| Product Name: | Air Powdered Double Diaphragm Pump | Pressure: | 8.4 Bar |
|---|---|---|---|
| Theory: | Air Diaphragm Pump | Liquid: | Chemical |
| Type: | Diaphragm Air Pump | Carton Size: | 520×350×650mm |
| Size: | 2 Inch | Wetted End: | Stainless Steel |
| Warranty: | 12 Month | ||
| High Light: | 2 Inch Air Operated Double Diaphragm Pump Stainless Steel,2 inch double diaphragm pump,stainless steel double diaphragm pump |
||

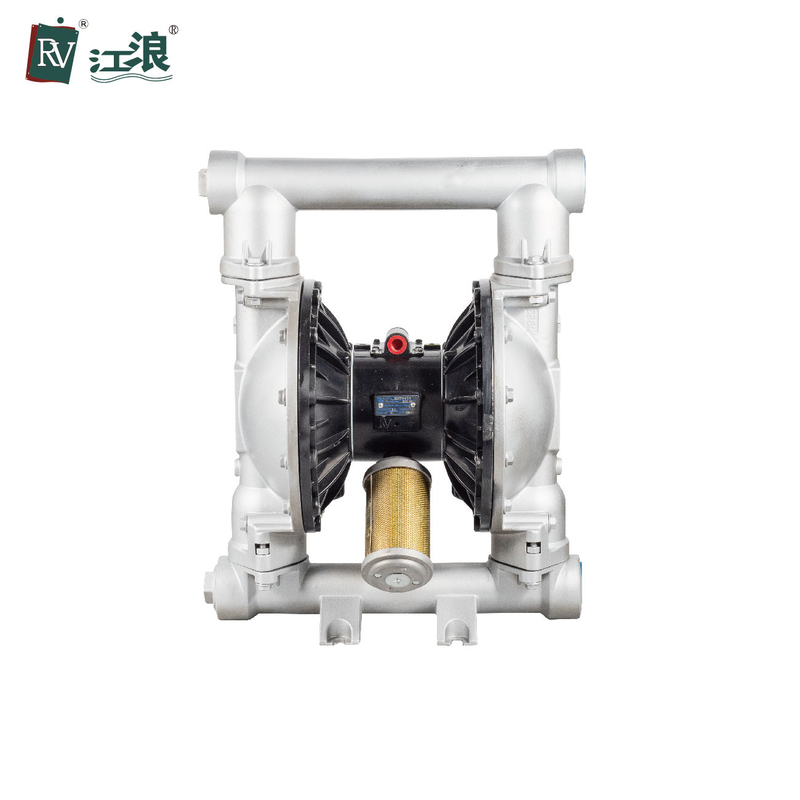

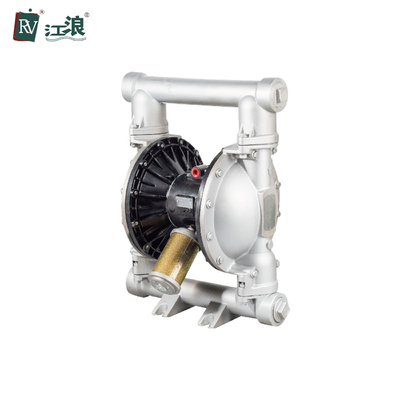

2 Inch Air Operated Double Diaphragm Pump Stainless Steel Positive Displacement
HIGH LEVEL TECHNICAL SUPPORT & AIR DIAPHRAGM PUMP SERVICING
Jianglang is a air diaphragm pump system supplier to industries throughout China and worldwide. Our skilled engineers deliver the ultimate integrated solutions curated to your specifications. We combine innovative technology and our expertise to supply you with air diaphragm pumps and integrated systems that meet the highest safety level for a broad range of industrial applications.
Purpose-built air diaphragm pump can be adapted to various applications. Jianglang technology strives to create end-to-end air diaphragm pump solutions that ensure safety, efficiency, and performance.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 150 gpm (570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in (6mm) |
| Max Air Consumption | 140 scfm ( 70L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in. |
| Net Weight | Stainless Steel 47 kg |
| Quantity (pieces) | 1-10 | 11-50 | 51-100 |
＞100
|
| Est. Time (days) | 3 | 5 | 10 |
To be negotiated
|
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Air diaphragm pump (AODD) pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic air diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm pump order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6 : 1.The air diaphragm pump can suck the peanut,pickles,tomato slurry,red sausage,chocolate,hops and syrup etc.
2.The air diaphragm pump can suck the paint,pigment,glue and adhesive etc.
3.The air diaphragm pump can suck various glazed slurries of tile,porcelain,brick and chinaware etc.
4.The air diaphragm pump can suck various toxin and flammable or volatility liquid etc.
5.The air diaphragm pump can suck various strong acid,alkali and corrosive liquid etc.
