Product Details:
|
| Materal: | PP | Brand: | RV |
|---|---|---|---|
| Max Solid Passage: | 0.37 In (9.4 Mm) | Pump Weight: | 66 Kg |
| Max. Flow Rate: | 1022 LPM | Carton Size: | 840×480×800 Mm |
| Size: | 3 Inch | Air Disctibution System: | Three-way Pilot Valve |
| Ball / Seats: | PTFE | ||
| Highlight: | RV Water Oil dual diaphragm air pump,RV ual diaphragm air pump 3 inch,RV Water Oil dual diaphragm pump |
||

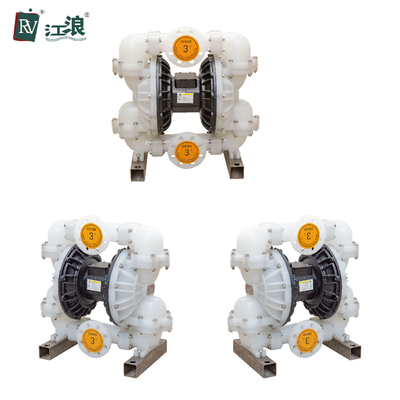

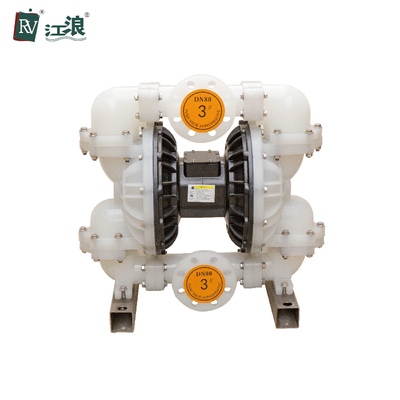

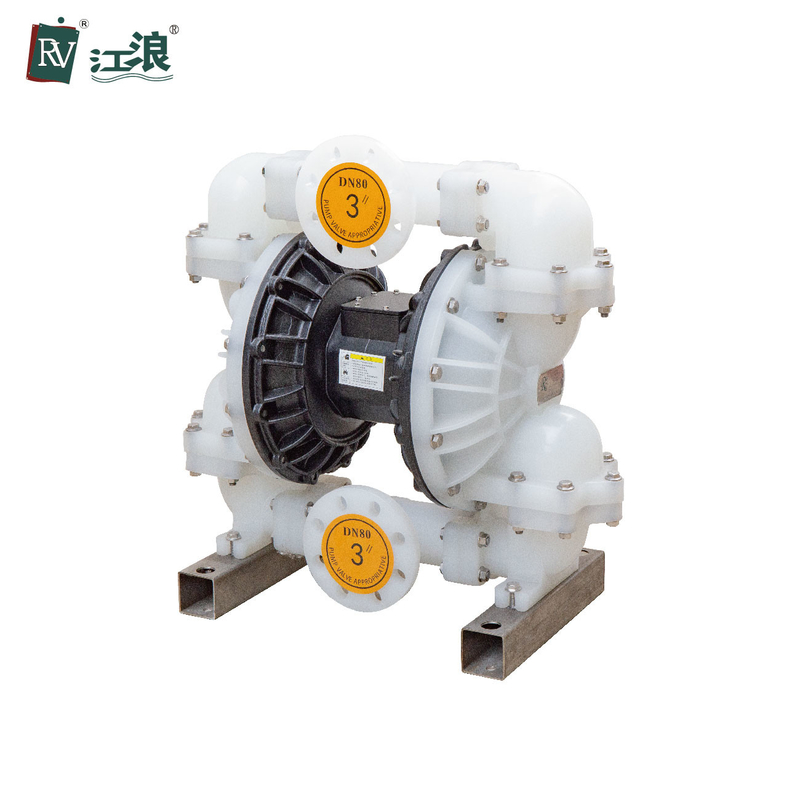

3 inch PP Air Driven Diaphragm Pump For Water Oil and Lotion Transfer
Air Driven Double Diaphragm Pump Advantages
1.Idling ,Self-priming , Submerse capability.
2.Provide stall-free, ice-free zero leak operation.
3.Epoxy-coated air section for tough environmental conditions.
4.Bolt joint design provides even sealing pressure for optimal performance.
5.Diversity of material,no rotating parts,applicable to various erosive situations.
6.Modular air valve,low pulsation operation,providing smooth and rapid changeover.
7.No electricity . It's safe and realiable while using in the flammable and explor place .
8.Can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
REPAIR KITS FOR WET END
| Part No. | Part Code | Part Name | Qty |
| 1 | 8001-TF | Valve Ball |
4 pcs |
| 2 | 8002-PV | Valve Seat |
4 pcs |
| 3 | 8003-FCP | Seat O-ring |
8 pcs |
| 4 | 8005-TF | Diaphragm |
2 pcs |
| 5 | 8006-ST | Backup Diaphragm |
2 pcs |
| 6 | 8008-TF | Plate O-ring |
4 pcs |
Packing & Shipping:
Air diaphragm pump have good suction lift characteristics, are self priming in most fluids, and can run dry. These air diaphragm pump can handle low to medium viscosity fluids with ease (including those containing large suspended solids) and may be used to air diaphragm pump both corrosive and flammable liquids. There’s a saying in the processing industries that if a material can be poured into an air diaphragm pump, these types of air diaphragm pump can generally pump it.
Due to their simple design, air diaphragm pump are relatively inexpensive to both purchase and operate, and coupled with their efficiency and accuracy, stainless steel versions are well suited for certain chemical processing applications, including filling, dispensing, and metering fluids,as well as water removal.
Common uses in many manufacturing industries.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
