Product Details:
|
| Certification: | CE ATEX ISO9001 | Materal: | Polypropylene |
|---|---|---|---|
| Brand: | RV | Color: | White |
| Flow Rate: | 19L/M | Weight: | 1.5kgs |
| Carton Size: | 21*16*20cm | Size: | 1/4 Inch |
| Model: | RVP-15001-0 | Feature: | Eco-Friendly |
| High Light: | 1/4 inch diaphragm pump,1/4" Diaphragm Pump Air Operated,1/4 air diaphragm pump |
||

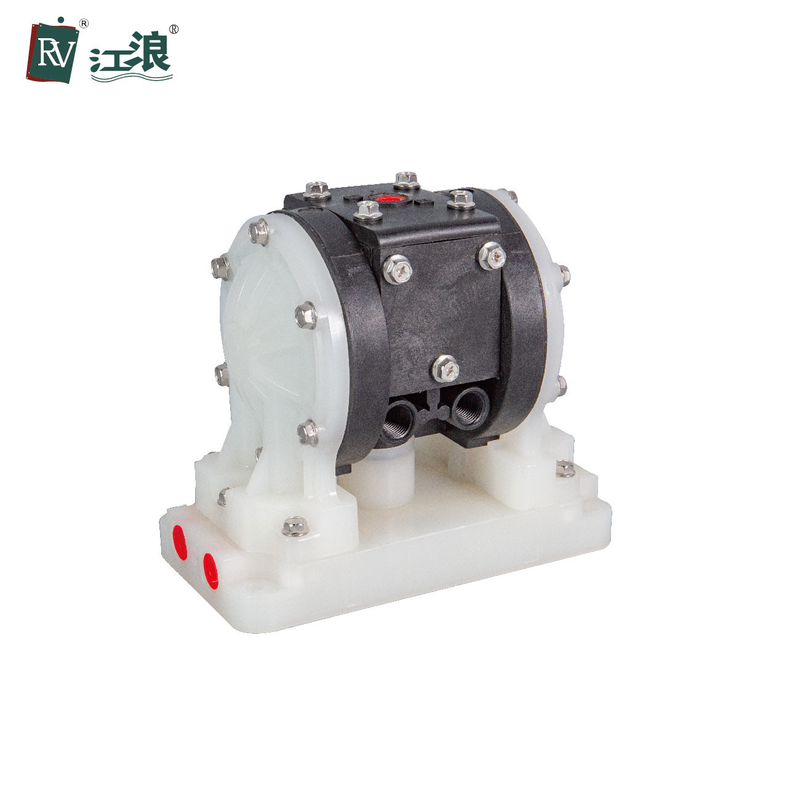

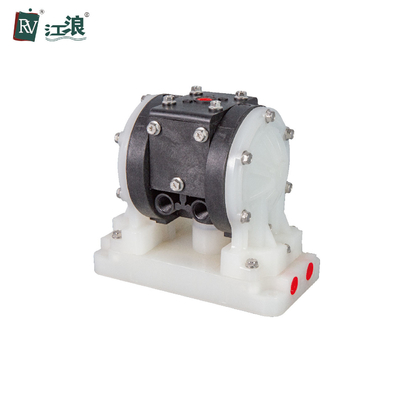

1/4" Diaphragm Pump Air Operated Low Pressure Pneumatic
Plastic Diaphragm Pump Features:
| Max Working Pressure | 100 psi(0.7Mpa, 7bar) |
| Max Flow Rate | 5.0 gpm(19lpm) |
| Max Reciprocating Speed | 320 cpm |
| Max Suction Height (Dry Sucking) | 3m |
| Max Permitted Grain | 0.06 in(1.5mm) |
| Max Air Consumption | 7.0scfm(3.5L/s) |
| Air Inlet Size | 1/4 in.npt(f) |
| Air Outlet Size | 1/4 in.npt(f) |
| Fluid Inlet Size | 1/4 in. |
| Fluid Outlet Size | 1/4 in. |
| Net Weight | PP pump 1.1kg; PVDF pump 1.5kg |
Packing & Shipping:
Company Information:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
Polypropylene Material used for air motor, wetted body parts, seats & balls
• Wide chemical compatibility
• General purpose
• Inexpensive alternative
