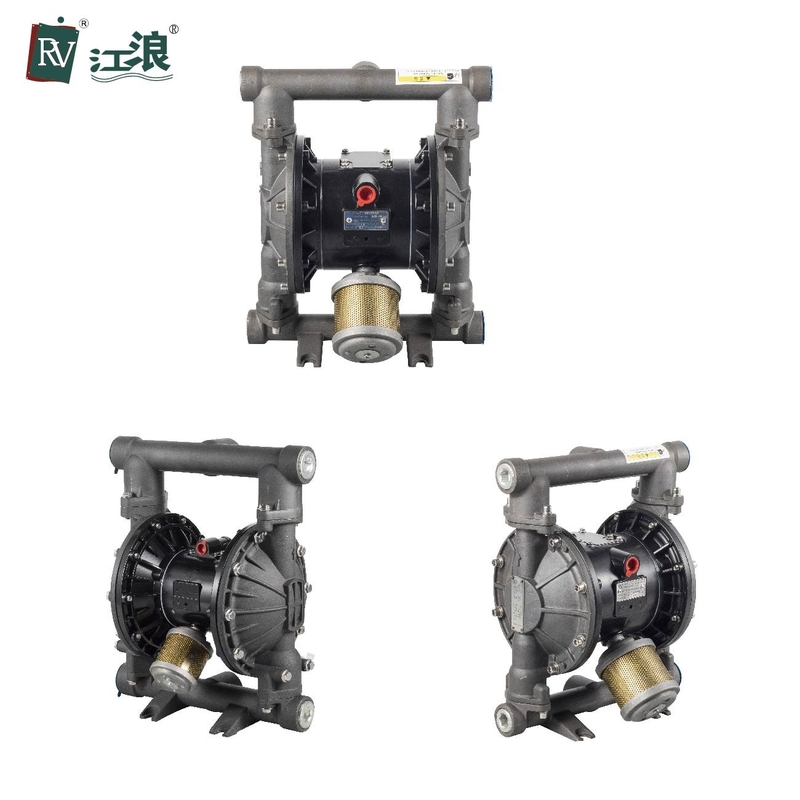

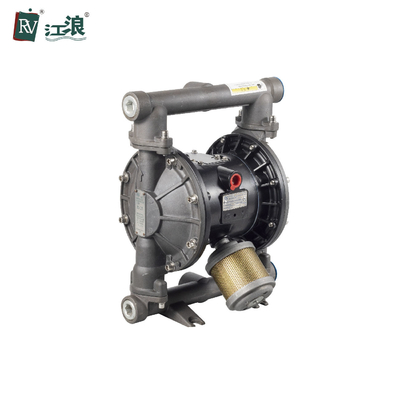

Product Details:
|
| Product Name: | Air Diaphragm Pump | Horese Power: | 8.4 Bar |
|---|---|---|---|
| Pressure: | Low Pressure | Ourlet Size: | 1"inch |
| Maximum Reciprocating Speed: | 276 Cpm | Certificateion: | ISO 9001 , CE , ATex |
| Valve Ball: | Santoprene | Diaphragm: | Santoprene |
| High Light: | 1 inch double diaphragm pump leak detection,double diaphragm pump 1,1 double diaphragm pump |
||
Aluminum Diaphragm Pump Standard Features:
- Air Driven-Intrinsically Safe. Air drive allows you to be free from electrical hazards or explosion-proof motor requirements.
- Excellent Wear Resistance & Minimum Maintenance. Without moving parts in contact with the liquids or rotating parts to wear, the pump is almost maintenance free.
- Self-Priming, Dry Start. Completely self-priming. Also, if liquid source runs dry, the pump can continue to operate without damage from overheating or friction wear until further liquid is available.
- Flow Control. Infinitely variable flow control can be regulated by simply opening or closing a valve on the discharge, or by increasing or decreasing the air supply.
- High Lift and Distance Transfer. Because pumps are designed at a 1:1 ratio, discharge pressures are equal to the air inlet pressure. Maximum pressure is approximately 70 PSI on the Poly pumps.
- Versatile Material Handling. Product capabilities range from clear water to highly viscous, abrasive or aggressive materials.
MAXIMUM LIQUID TEMPERATURE FOR RUBBER PARTS
| Buna N | 180°F (82°C) |
| Santoprene | 180°F (82°C) |
| PTFE | 212°F (100°C) |
| Hytrel | 248°F (120°C) |
| 248°F (120°C) | |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight |
Aluminum 8.2kg |
Air Driven Double Diaphragm Pump Application
Mud Treatment "Water" is by means of physical, chemical, biological, and removal of a number of production, Life of harmful substances do not need to process. Diaphragm pump also play an important role in environmental protection ,mud treatment industry protecting the diaphragm pump in the waste water treatment industry transport all kinds of waste water ,lime syrup,soft sediments, sewage and chemical waste water.
FAQ
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
