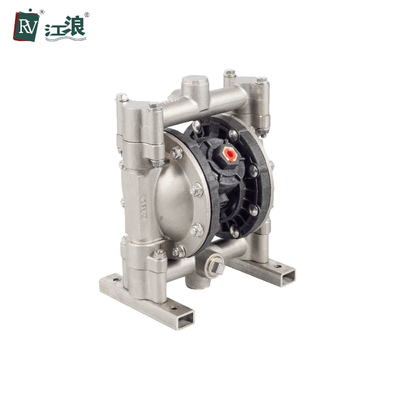

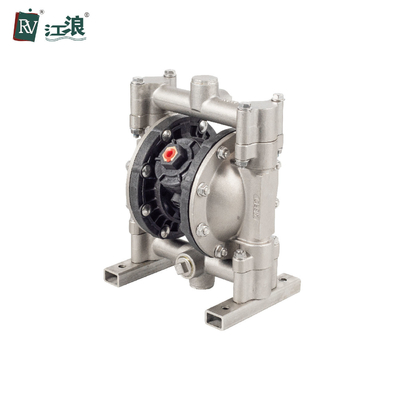

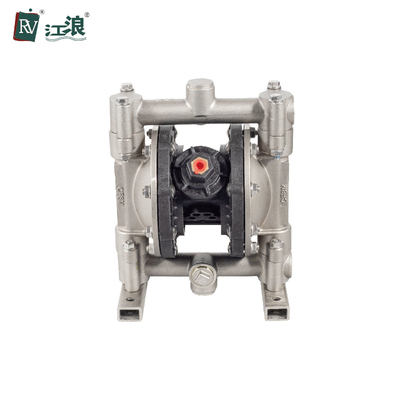

Micro Miniature Air Operated Stainless Steel Diaphragm Pump 316 1/2" Acid Chemical Dosing

Micro Miniature Air Operated Stainless Steel Diaphragm Pump 316 1/2" Acid Chemical Dosing

Stainless Steel Diaphragm Pump Application:

1. The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various wedge water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipment.

Stainless Steel Diaphragm Pump Installation:

1. Be sure the mounting can support the weight of the pump, hoses, and accessories, as well as the stress during operation progress.

2. During installation, make sure that the pump has been fixed with bolts on the mounting feet.

3. In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pump.

4. While fastening the pump, rubber pad can be padded to reduce the noise and vibration during operation.

Packing & Shipping:

Air Operated Diaphragm Pump Introduction

RV air operated diaphragm pump can not only pump fluid liquids and day powders, but also some mediums that usually hard to flow. It possesses the advantages of self-priming pump, submerged pump, shielding pump, slurry pump, impurity pump and other transportation machines.

1. No need to pilot water, suction lift up to 7m, pump head up to 80m, outlet pressure ≥ 0.8 MPa.

2. Spacious flowing way with good through-pass performance, the largest size of particles allowed can be up to 9.4mm. While pumping slurry and impurity, the abrasion is very low.

3. The pump head and capacity can be adjusted via the pressure of air source (between 0.1~0.84 MPa).

4. Temperature range of working environment: 5～65℃

5. The air operated diaphragm pump has no rotating parts and shaft seals. The diaphragms separate the pumped medium from moving part and working medium absolutely, so that the pumped medium does not leak to outside. So there are no risks of environment pollution and personal injury while pumping poisonous, volatile or corrosive media.

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.

3. Q: What about the package ?

A: Standard export plywood case or carton.

4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.

5. Q: The use of air diaphragm pump have?

A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air operated  diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.

6. Q: How air operated diaphragm pump quality and service?

A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
