Product Details:
|

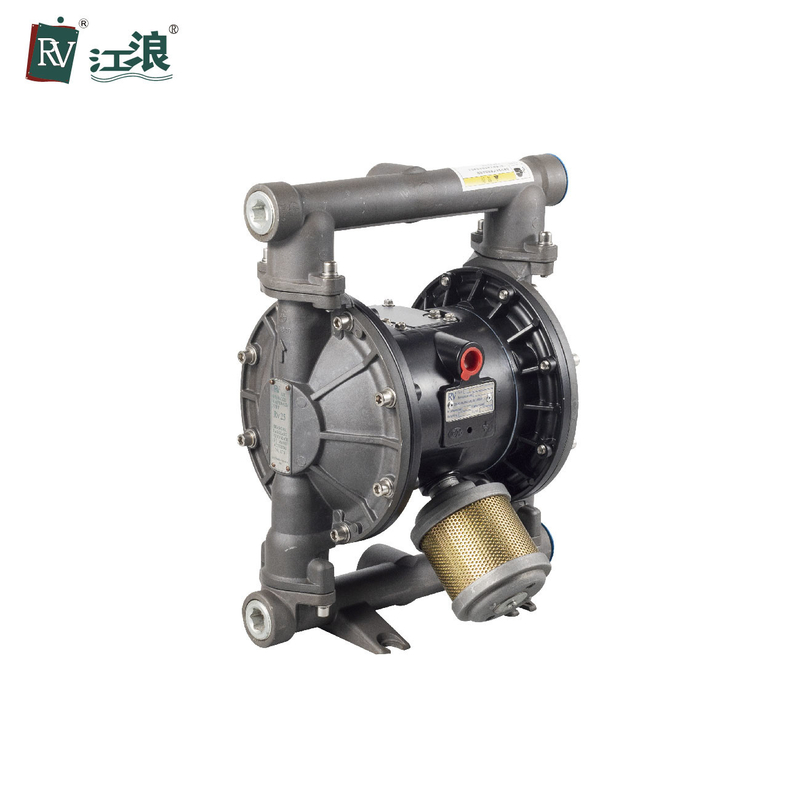

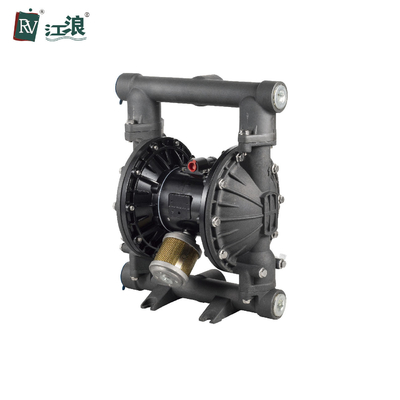

| Product Name: | Air Diaphragm Pump (AODD Pump） | Horese Power: | 8.4 Bar |
|---|---|---|---|
| Pressure: | Low Pressure | Ourlet Size: | 1" Inch |
| Maximum Reciprocating Speed: | 276 Cpm | Certificateion: | ISO 9001 , CE , ATex |
| Valve Ball: | Buna-N | Diaphragm: | Buna-N |
| Highlight: | nitrile inside diaphragm pump fuel,fuel aodd pump 1",nitrile fuel pump diaphragm material |
||
PERFORMANCE TO MATCH ANY REQUIREMENTS:
MAXIMUM LIQUID TEMPERATURE FOR RUBBER PARTS
| Material | |
| Buna N | 180°F (82°C) |
| Santoprene | 180°F (82°C) |
| PTFE | 212°F (100°C) |
| Hytrel | 248°F (120°C) |
| 248°F (120°C) | |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight |
Aluminum 8.2kg |
AODD Pump Application
Mud Treatment "Water" is by means of physical, chemical, biological, and removal of a number of production, Life of harmful substances do not need to process. Diaphragm AODD pump also play an important role in environmental protection ,mud treatment industry protecting the diaphragm AODD pump in the waste water treatment industry transport all kinds of waste water ,lime syrup,soft sediments, sewage and chemical waste water.
Our service
AODD pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Air diaphragm pump (AODD) pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".
FAQ
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
