Product Details:
|
| Place Of Origin: | Shanghai, China | Type: | Air Operated Diaphragm Pump |
|---|---|---|---|
| Pressure: | 7 Bar, Low Pressure | Power: | Pneumatic |
| OEM: | Applicable | Displacement Per Cycle (Liters): | 0.15 |
| Weight: | 4.6kg | ||
| High Light: | polypropylene PP Diaphragm Pump,1/2" Water Air Driven Transfer Pump,RV polypropylene diaphragm pump |
||

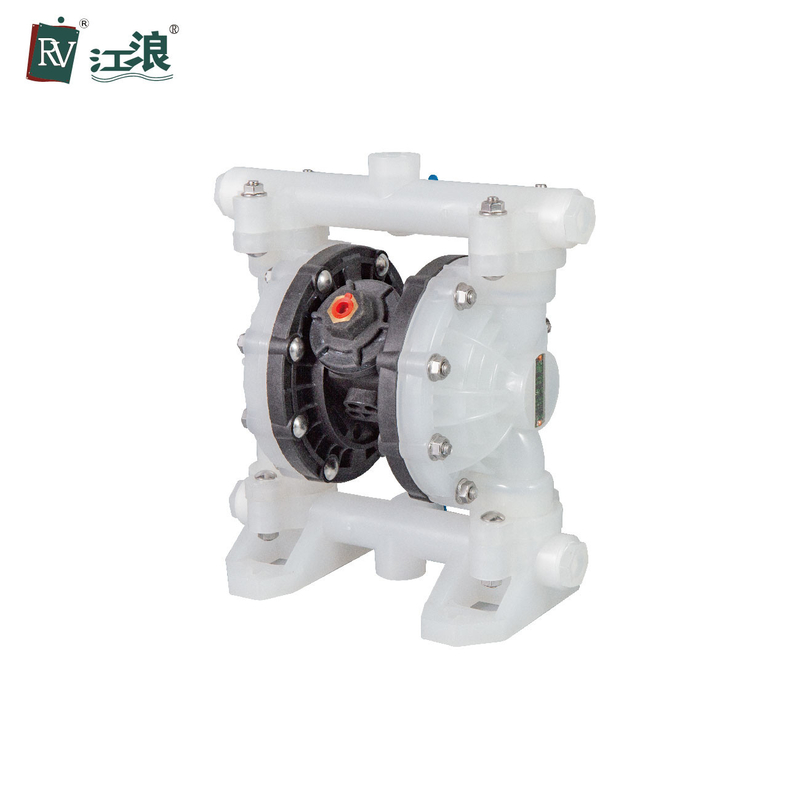

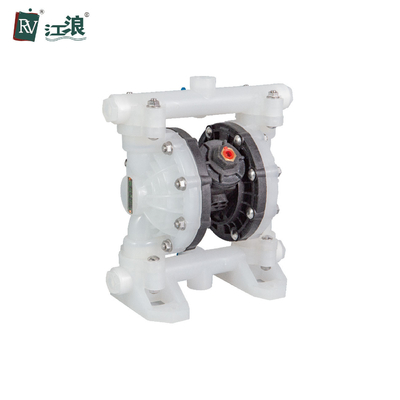

Polypropylene PP Diaphragm Pump Portable 1/2" Water Air Driven Transfer Pump
2. Modular air valve for stall-free ,low pulsation operation ,providing smooth and rapid changeover
3. Up to 5x longer diaphragm life for less maintenance and downtime
4. Four bolt joint design provides even sealing pressure for optimal performance
Air Driven Double Diaphragm Pump Function Description:
| A | Simple structure,reliable connection ,easy assembly and disassembly. |
| B | Modular design,low air consumption,no dead spots and no need lubrication. |
| C | Enhanced the chamber strength,has long_term durability. |
| D | Bolts connection design,good seal. |
| E | Adopt special grinding machine to process in high roundness and good seal. |
| F | Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm. |
| Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
| Max Capacity | 15 gpm ( 57lpm ) |
| Max Reciprocating Speed | 400 cpm |
| Power | Pnuematic |
| Max Permitted Grain | 3/32 in ( 2.5mm ) |
| Advantages: | Explosion-proof |
| Air Inlet Size | 1/4 in.npt (f) |
| Air Outlet Size | 3/8 in.npt (f) |
| Fluid Inlet Size | 1/2 in. |
| Fluid Outlet Size | 1/2 in. |
| Net Weight | 3.4kg |
Spraying and Cleaning
Air Driven Double Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers/bottles for anti-static. These pumps are suited for these types of applications due to their durability and the volume produced by each pump. The pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air operated diaphragm pump have?
A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air diaphragm pump quality and service?
A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
