Product Details:
|
| Product Name: | Air Diaphragm Pump | Max. Pressure: | 125 Psi |
|---|---|---|---|
| Temperature: | Lowest -40 F | Highest Temperature: | 350 F |
| Air Valve Material: | PP | Connection Type: | FNPT / FBSP |
| Ball: | PTFE | Diaphragm: | PTFE |
| High Light: | 1" PTFE diaphragm pump membrane,PTFE diaphragm pump membrane material,1" air operated waste oil transfer pump |
||

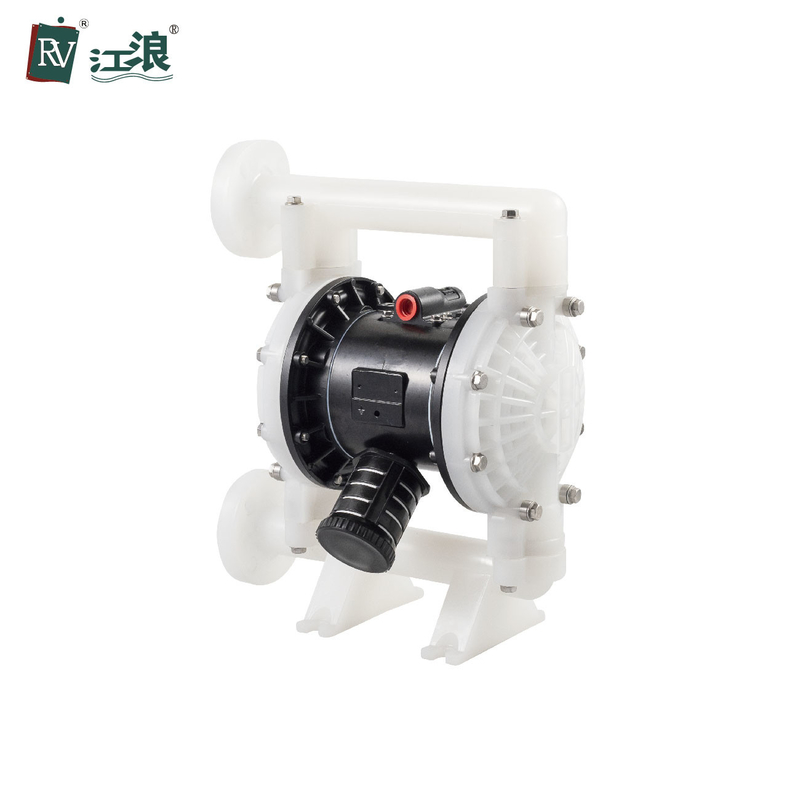

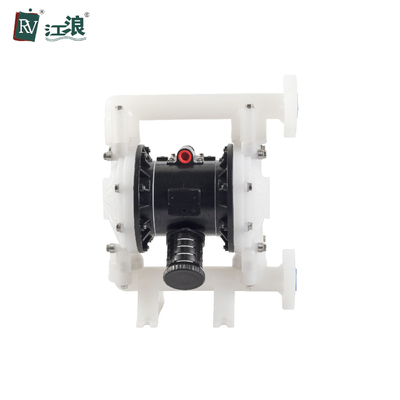

1" PTFE diaphragm pump membrane material air operated waste oil transfer pump
Polypropylene Diaphragm Pump Advantages:
Idling ,Self-priming , Submerse capability.
Provide stall-free, ice-free zero leak operation.
Epoxy-coated air section for tough environmental conditions.
Bolt joint design provides even sealing pressure for optimal performance.
Diversity of material,no rotating parts,applicable to various erosive situations.
Modular air valve,low pulsation operation,providing smooth and rapid changeover.
No electricity . It's safe and realiable while using in the flammable and explor place .
Can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
PARAMETER
| Max Working Pressure | 120 psi(0.8Mpa, 8.4bar) |
| Max Flow Rate | 40 gpm(151lpm) |
| Max Reciprocating Speed | 276 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.16 in(4mm) |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight | PP pump 10kg |
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities
FAQ
Q1. Can I have a sample order for air operated diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air operated diaphragm pump order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air operated diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our air operated diaphragm pump.
