Product Details:
|
| Product: | Electric Pump | Maxminum Pressure: | 0.6 Mpa |
|---|---|---|---|
| Max. Flow Rate: | 100 Liter Per Minute | Suction Lift: | 3 M |
| Motor Power: | 2.2 Kw ( 3kw As Senior Option) | Inlet & Outlet: | 1-1/2 " |
| Motor Speed: | 1450 R/min | Pump Casting: | Aluminum |
| Valve Seat: | SS304 | Membrane: | Santoprene |
| High Light: | 1 1/2"Motor Diaphragm Pump inside Nitrile,RV nitrile inside diaphragm pump,RV motor driven diaphragm metering pump |
||

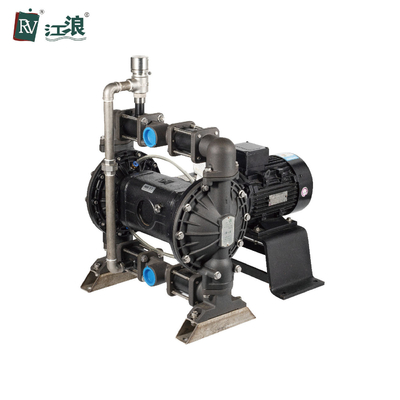

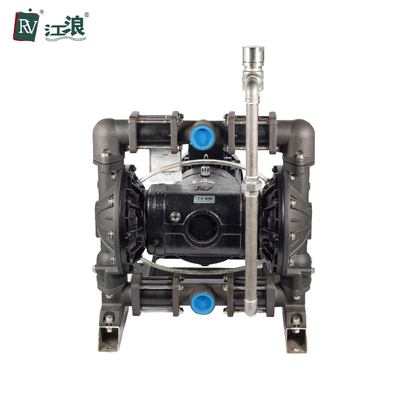

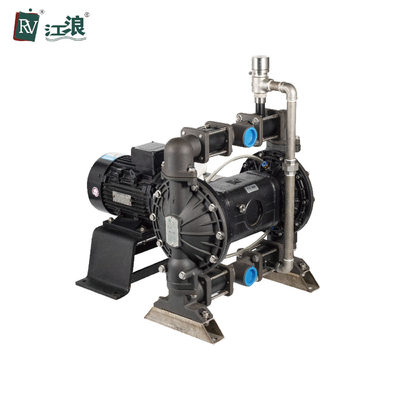

1 1/2"Motor Diaphragm Pump Inside Nitrile Rubber Diaphragm Pump Oil Transfer
Motor Diaphragm Pump Features:
1. Diaphragm pump moving system and reducer components are installed in the same box.
2. The output shaft of reducer can function simultaneously as input shaft of back-and-forth motion, thereby to get a compact structure.
3. The installation datum is uniformly set on the shell; the motor and the shell are connected by flange
4. Larger motion chamber for more storage of lubricating oil, which is better for heat radiation
5. Back-and -forth motion is supported by linear bearing, to get less friction resistance and easier replacement.
6. Inner placed ventilation pipe help better air changeover between diaphragm and inner splint.
Motor Diaphragm Pump Application:
The motor diaphragm pumps can be applied to ship/bus/train unloading, chemical production, batch treatment and mixing, large tank or tank area conveying, common feed-conveying, system flushing, wastewater treatment or fluid filtration, packaging or filling, recycling and recycling.
|
Application filed
|
Materials
|
|
Chemical
|
Acid, alkali, solvent, suspension, dispersion system.
|
|
petrochemical industry
|
thick oil, grease, slurry, sludge
|
|
Coating industry
|
Resin, solvent, colorant, paint
|
|
Daily chemical industry
|
Detergent, shampoo, emulsion, emulsion, hand cream, surfactant
|
|
Ceramic industry
|
Mud, porcelain pulp, lime pulp, clay pulp
|
|
Mining industry
|
Coal slurry, magma, mud, mortar, lubricating oil
|
|
Water treatment
|
Lime slurry, soft sediment, waste water, chemicals, wastewater
|
|
Food industry
|
Liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey
|
|
Beverage industry
|
Yeast, syrup, concentrate, gas - liquid mixture, wine, juice, corn slurry
|
|
Medical
|
Solvent, acid, alkali, plant extract liquid, ointment and other kinds of pharmaceutical liquid
|
|
Paper making
|
Adhesives, resins, paints, inks, pigments, hydrogen peroxide
|
|
Electronics
|
Solvent, plating solution, cleaning solution, nitric acid, waste acid, corrosive acid, polishing solution
|
|
textile
|
Dye stuff, resins, gels
|
|
Building
|
Cement paste, ceramic tile binder, rock paste, ceiling finish
|
|
Car industry
|
Polishing emulsion, oil, coolant, automotive primer, oil emulsion, varnish, varnish additive, degreaser
|
|
furniture
|
Adhesives, varnishes, dispersants, solvents, colorants, wood gums, epoxy resins, starch binders
|
Product Details
|
Max Outlet Pressure
|
0.6Mpa , 6bar
|
|
Max Flow Rate
|
6m³/h
|
|
Max Suction Lift
|
3m
|
|
Motor Power
|
2.2KW in standard (Senior3KW as options)
|
|
Motor Speed
|
1450r/min
|
|
Fluid Inlet Size
|
1 1/2 inch Threaded or Flange
|
|
Fluid Outlet Size
|
1 1/2 inch Threaded or Flange
|
|
Weight
|
Aluminum pump: 77KGS
|
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
1. Our raw material, Hytrel from Dupont, Santoprene from Exxon, PTFE from Daikin and Saint-Gobain etc.
2. Increase the height of the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.
FAQ
1. Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking , 1-7 working day .
4. Q: What about package?
A: Cartons with foam inside & wooden case & Pallet
5. Q: How are the products delivered to us?
A: By International express or Sea.
6. Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
