Product Details:
|
| Materal: | Aluminum | Brand: | RV |
|---|---|---|---|
| Max. Capacity (lpm): | 366 Lpm | Max. Outlet Pressure: | 7 Bar |
| Motor Speed: | 1450 R/min | Fluid Size: | DN80 |
| Size: | 3 Inch | Power Driven: | Electric |
| Seats: | SS304 | ||
| High Light: | RV 3 Inch motorized diaphragm pump,RV motorized diaphragm pump Motor Driven,RV motorized diaphragm pump |
||

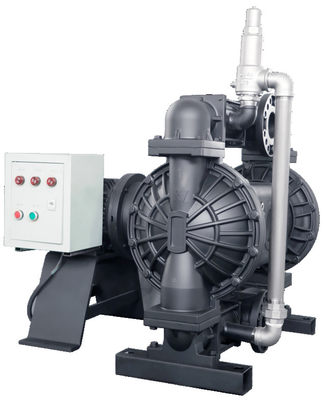

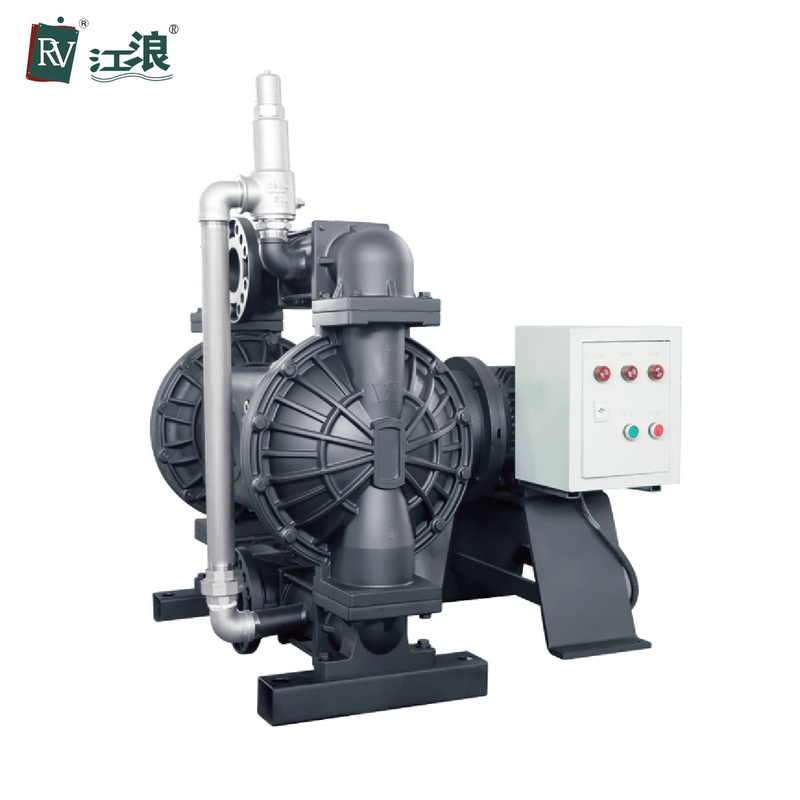

3 Inch Motorized Diaphragm Pump Motor Driven Capacity 366 Lpm Agricultural
Motor Diaphragm Pump Features:
RVE80 motor diaphragm pump combine all of the benefits of a traditional air operated diaphragm pump like self-priming, stalling under pressure and increased diaphragm life with the benefits of an electric diaphragm pump like energy cost savings, reduced pulsation and increased pump control.
APPLICATIONS, PICKING THE RIGHT PUMP
Technical Specification:
| Max Outlet Pressure | 0.7Mpa , 7bar |
| Max Flow Rate | 22m³/h |
| Max Suction Lift | 3m |
| Motor Power | 5.5 KW in standard (Senior 7.5KW as options
)
|
| Motor Speed | 1450r/min |
| Fluid Inlet Size | 3 inch Flange |
Exterior dimension drawing
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The air diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
