Product Details:
|
| Product Name: | Air Diaphragm Pump | Horese Power: | 8.4 Bar |
|---|---|---|---|
| Pressure: | Low Pressure | Ourlet Size: | 1 Inch |
| Maximum Reciprocating Speed: | 276 Cpm | Certificateion: | ISO 9001 , CE , ATex |
| Valve Ball: | PTFE | Diaphragm: | PTFE |
| High Light: | aodd air diaphragm pump 1'',concrete diaphragm pump,Aodd Air Diaphragm Pump Concrete |
||

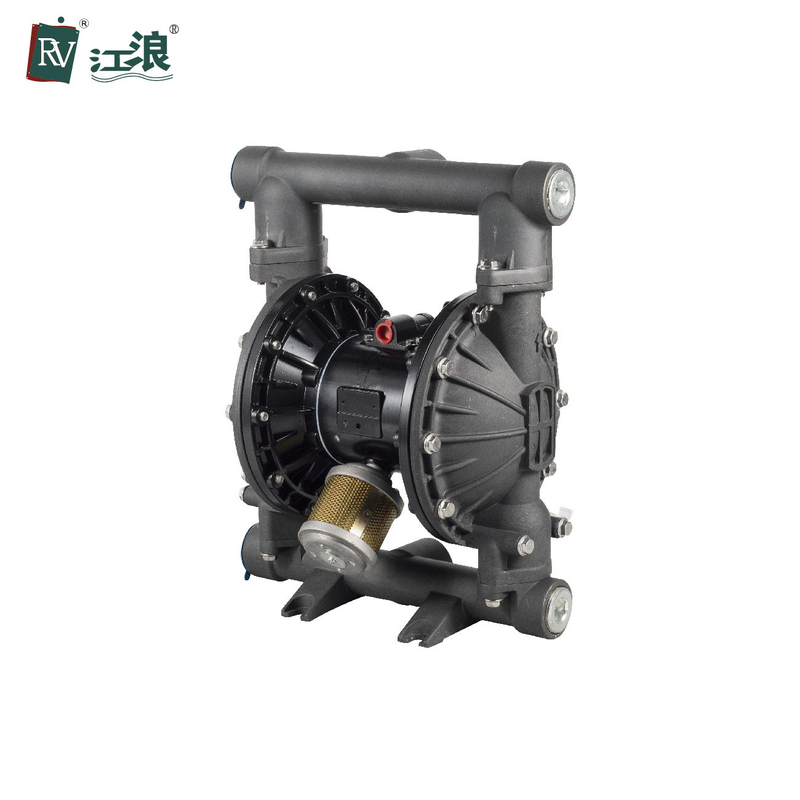

AODD Pump Features:
The RV Aluminum diaphragm pumps are CE certified.
Bolt joint design provides even sealing pressure for optimal performance.
Diaphragm,ball and ball seat adopt imported materials with longer service life.
Due to their pneumatic motor, they could be used in potentially explosive areas.
Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
MAXIMUM LIQUID TEMPERATURE FOR RUBBER PARTS
| Buna N | 180°F (82°C) |
| Santoprene | 180°F (82°C) |
| PTFE | 212°F (100°C) |
| Hytrel | 248°F (120°C) |
| 248°F (120°C) | |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight |
Aluminum 8.2kg |
PTFE Material used for balls & diaphragms:
• Excellent when used with solvents
• Poor abrasion resistance
• Widest chemical compatibility with fluids
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Air diaphragm pump (AODD) pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic air diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
FAQ
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
