Product Details:
|
| Materal: | Ductile Iron | Brand: | RV |
|---|---|---|---|
| Color: | Black | Flow Rate: | 446L/M |
| Usage: | Air Diaphragm Pump | Carton Size: | 49*28*66cm |
| DN (mm): | 40 Mm | Model: | RVA-B6366-F |
| Max. Pressure: | 8.4 Bar | Feature: | Eco-Friendly |
| High Light: | 1 1 2 diaphragm pump,1.5 inch diaphragm pump,1 1 2" Pneumatic diaphragm pump air compressor |
||

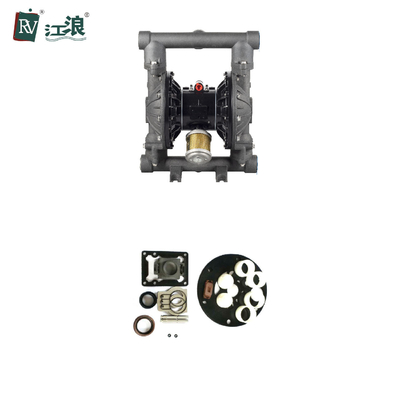

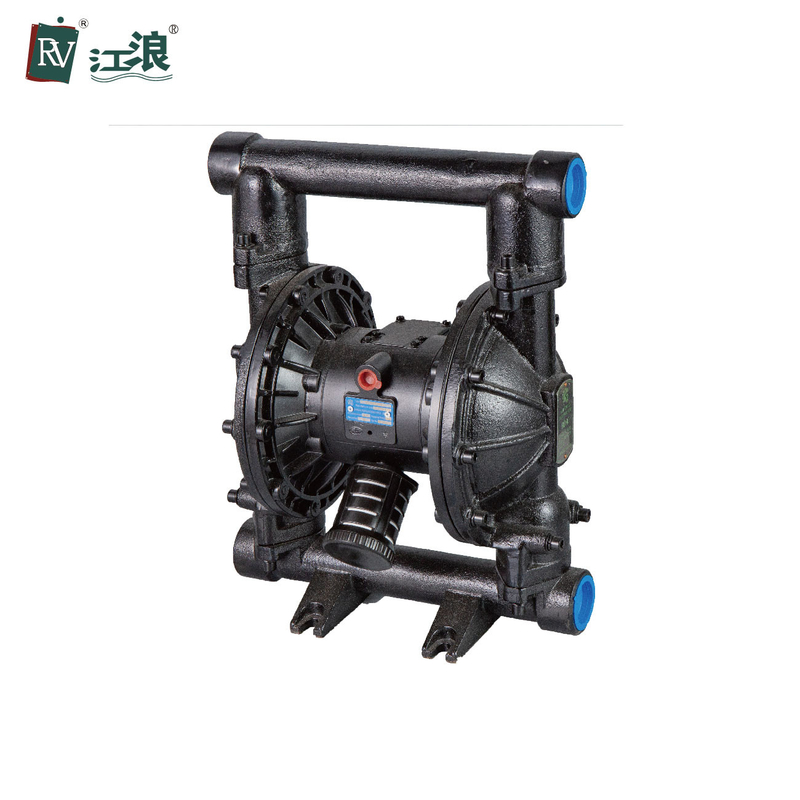

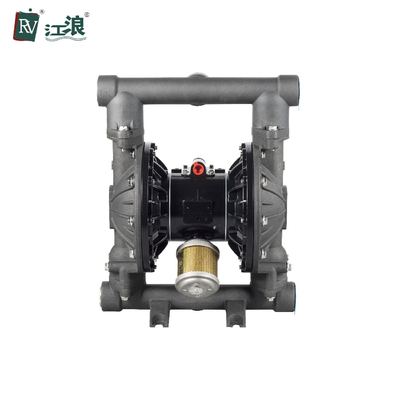

1-1/2" Pneumatic Diaphragm Pump Air Compressor Painting Coating Transfer
What Is Air Diaphragm Pump?
Air diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid, with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion.
There are four air diaphragm pump material: plastic, aluminum, cast iron, stainless steel.
Diphragm use nitrile rubber, neoprene ,, depending on the liquid medium, to meet the needs of different users.
Air Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free
| Place of Origin | Shanghai, China |
| Power Source | Pneumtic |
| Structure | Air Diaphragm Pump |
| Power Driven | Compressed air |
| Max Permitted Grain | 0.2 in(5mm) |
| Certification | CE, ISO: 9001 |
| Air Inlet Size | 1/2 in.npt(f) |
| Wetted End | Aluminum |
| Fluid Inlet Size | 1 1/2 in. |
| Fluid Outlet Size | 1 1/2 in. |
| Installation | 480×290×540mm |
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Working Principle:
The RV series air diaphragm pump are based on the following working principle: two flexible diaphragms are fitted into two symmetrical chambers of the air diaphragm pump severally and connected as a whole part by a link rod. The compressed air enters the central body through the in-suck terminal and impels the diaphragms in two chambers to drive consequently the link rod into move synchronously. At the same time, the air in the other chamber is expelled from the back side of the diaphragm. When piston reaches the end of the stroke, the air-distributing valve guide compressed air into the other chamber automatic.
Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".
AIR DIAPHRAGM PUMP SERVICES
· We provide guaranteed first-class technical support services to address all your pumping needs. Our clients can trust in our extensive capacity to offer custom solutions with consistent reliability and high performance.
· We implement comprehensive servicing that is tailor-made to match our client’s needs for air diaphragm pump.
· We supply a vast range of spare parts to maximise the user’s air diaphragm pump experience and convenience.
