Product Details:
|
| Pump Materal: | Ductile Iron | Typical Fluids Handled: | Chemicals |
|---|---|---|---|
| Typical Application: | Chemical Transfers | Max. Free Flow Delivery: | 1022 Lpm |
| Max. Pump Speed: | 135 Cpm | Displacement Per Cycle: | 2.0 Gallon (7.6 Liter) |
| Size: | 3 Inch | Noise Level: | Lower Than 75 Db |
| Max. Fluid Working Pressure: | 120 Psi | ||
| High Light: | 3 aodd pump,3 inch aodd pump assembly,ductile iron pump |
||

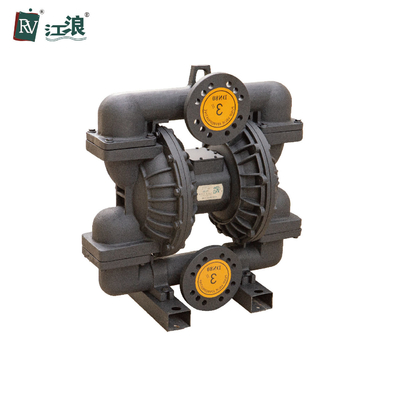

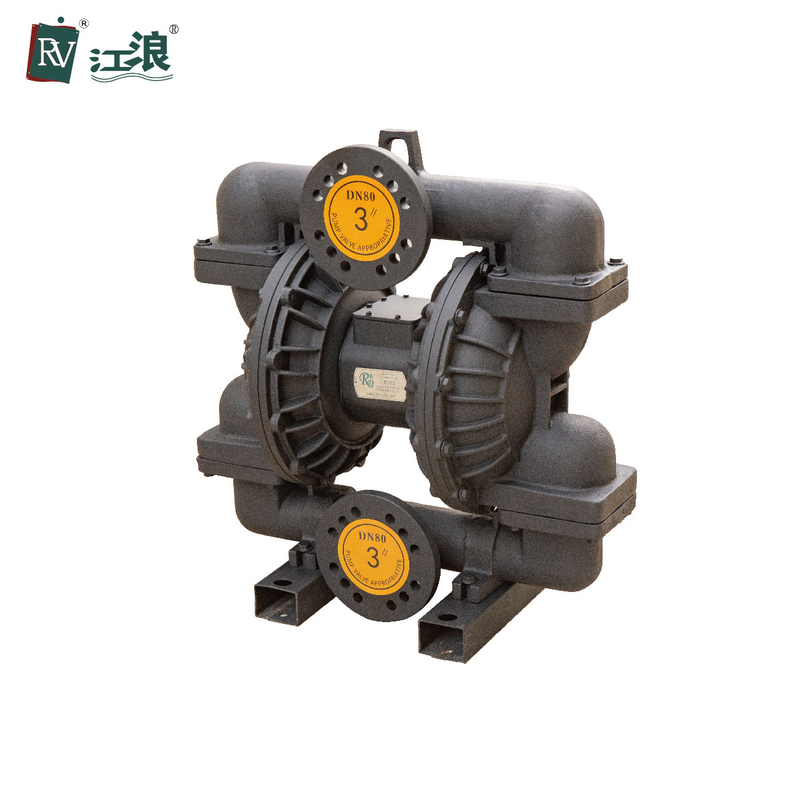

3 Inch Aodd Pump Assembly Douctile Iron PTFE Membrane
1. Because it is using air as power, the diaphragm pump does not heat and produce sparks; suitable for use in flammable and
explosive environment.
2. Use PTFE diaphragm, can be used for chemical properties relatively volatile liquid, corrosive medium.
3. Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 270 gpm ( 1022lpm ) |
| Max Reciprocating Speed | 135 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37 in ( 9.4mm) |
| Max Air Consumption | 180scfm(90L/s) |
| Air Inlet Size | 3/4 in.npt(f) |
| Air Outlet Size | 1 in.npt(f) |
| Fluid Inlet Size | 3 in. |
| Fluid Outlet Size | 3 in. |
| Net Weight | Ductile Iron 115kg |
Exterior dimension drawing

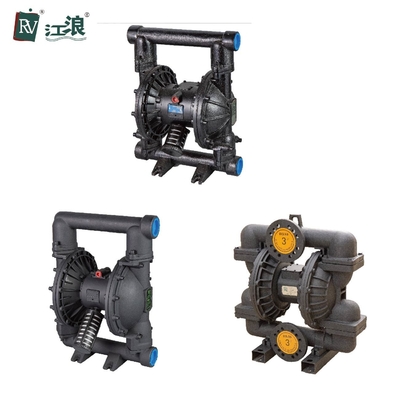

Display
Packing & Shipping:
DIAPHRAGM OPTIONS
PTFE
Santoprene
Buna-N
Hytrel
Neoprene
VERSATILITY
This air diaphragm pump handles viscous fluids, slurries, solid laden fluids, no priming needed, no foaming of fluid pumped, no stall damages, portable
INSTALLATION
Be sure the mounting can support the weight of the air diaphragm pump, hoses, and accessories, as well as the stress during operation progress.
During installation, make sure that the air diaphragm pump has been fixed with bolts on the mounting feet.
In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the air diaphragm pump.
While fastening the air diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.
