Product Details:
|
| Certification: | CE ATEX ISO9001 | Product: | RV10 Air Operated Diaphragm Pump |
|---|---|---|---|
| Fluid Inlet / Outlet: | 3/8 N. P. T. | Max. Operating Pressure: | 100 Psi (7 Bar) |
| Max. Self-priming Capaity: | 5 M | Max. Diameter Of Passing Solids: | 1mm - 1.6mm |
| Maximum Flow: | 7gpm (26.5lpm) | Air Inlet: | ( Female ) 1/4 |
| Material: | Aluminum Max. Temp. 95 °C | Feature: | Eco-Friendly |
| High Light: | 7 bar pneumatic diaphragm pump,100 psi pneumatic diaphragm pump,3/8 inch diaphragm pump |
||

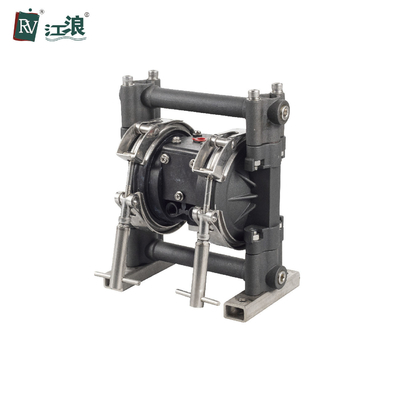

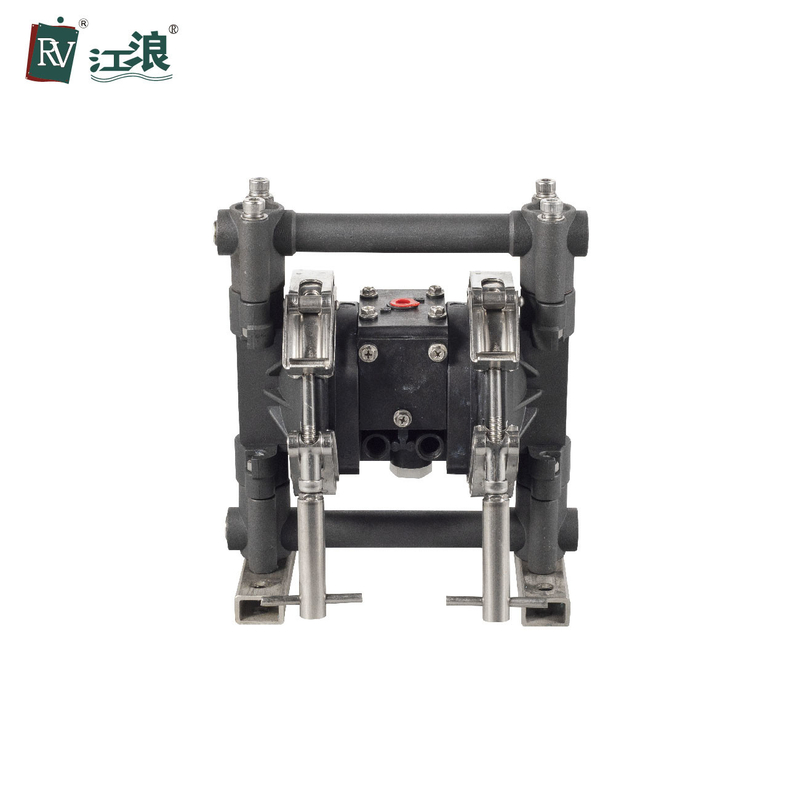

100 psi 7 bar pneumatic diaphragm pump suppliers Air Compressed 3/8"
Air Operated Diaphragm Pump Principle:
As a result of air pressure acting on the entire surface of the diaphragm, the diaphragm is in a balanced condition while pumping. This measurably extends diaphragm life over that of mechanically air operated diaphragm pumps.
Because compressed air is limited, the maximum pressure is also safely limited. This air operated diaphragm pump are appropriately selected for on-demand intermittent requirements or continuous duty.
Air operated diaphragm pump are available with a wide choice of construction materials and accessories for any industrial.
We want to become the preferred partner of manufacturer leaders whenever they need the most reliable, fast and globally spread service for the air operated diaphragm pump.
Air Operated Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free
| Type | RV10 |
| Inlet size | 3/8" |
| Outlet size | 3/8" |
| Air inlet size | 1/4" |
| Suction lift (dry) | 3.7m |
| Max. working pressure | 7bar ; 0.7MPa |
| Max. flow rate | 26.5 l/min(1.56m³/h) |
| Max. delivery lift | 70m |
| Max. grain diameter | 1.6mm |
| Weight | 3.9 kgs |
| Available body material | Aluminum |
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
