Product Details:
|
| Pump Materal: | Ductile Iron | Typical Fluids Handled: | Building Wasterwater |
|---|---|---|---|
| Typical Application: | Mining Industry | Max. Free Flow Delivery: | 1022 Lpm |
| Max. Pump Speed: | 135 Cpm | Displacement Per Cycle: | 2.0 Gallon (7.6 Liter) |
| Size: | 3 Inch | Noise Level: | Lower Than 75 Db |
| Max. Fluid Working Pressure: | 120 Psi | ||
| High Light: | 3 inch Pneumatic Diaphragm Pump,Pneumatic diaphragm pump lubrication free,3 inch Santoprene diaphragm pump |
||

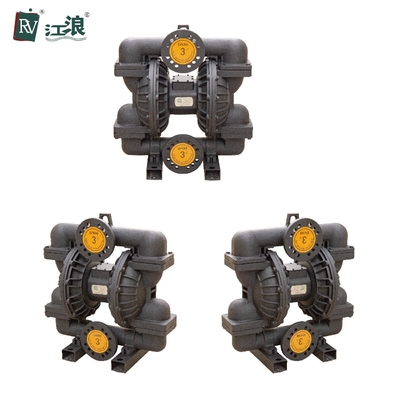

3 inch Pneumatic Diaphragm Pump Lubrication Free Douctile Iron with Santoprene
1. Because it is using air as power, the pneumatic diaphragm pump does not heat and produce sparks; suitable for use in flammable and
explosive environment.
2. Use santoprene diaphragm, can be used for wastewater properties relatively.
3. Pneumatic Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 270 gpm ( 1022lpm ) |
| Max Reciprocating Speed | 135 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37 in ( 9.4mm) |
| Max Air Consumption | 180scfm(90L/s) |
| Air Inlet Size | 3/4 in.npt(f) |
| Air Outlet Size | 1 in.npt(f) |
| Fluid Inlet Size | 3 in. |
| Fluid Outlet Size | 3 in. |
| Net Weight | Ductile Iron 115kg |
Exterior dimension drawing

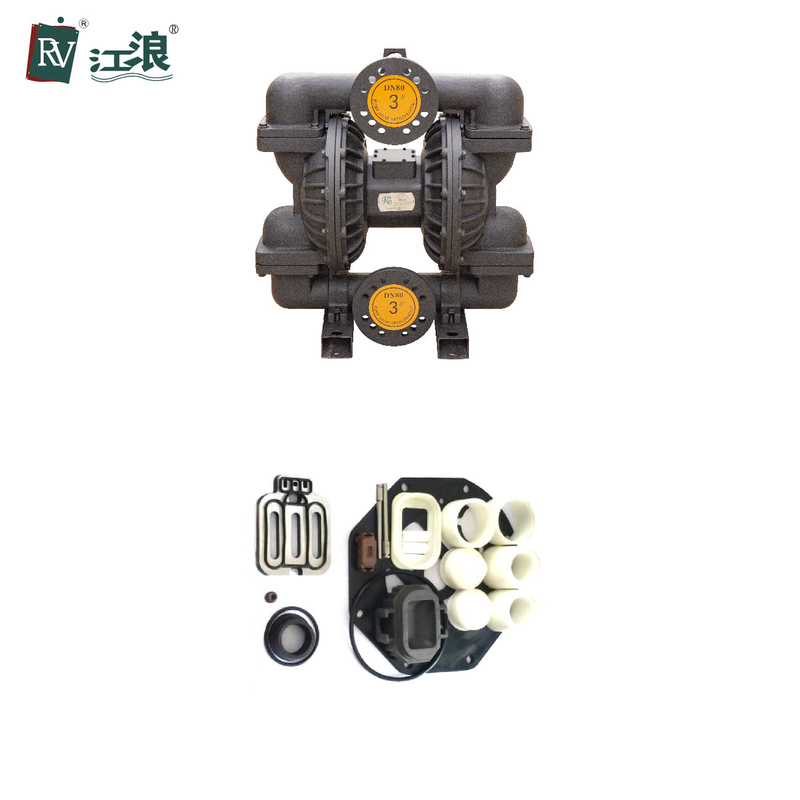

Display
Packing & Shipping:
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Pneumatic diaphragm pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, pneumatic diaphragm pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
INSTALLATION
Be sure the mounting can support the weight of the pneumatic diaphragm pump, hoses, and accessories, as well as the stress during operation progress.
During installation, make sure that the pneumatic diaphragm pump has been fixed with bolts on the mounting feet.
In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the air diaphragm pump.
While fastening the pneumatic diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.
